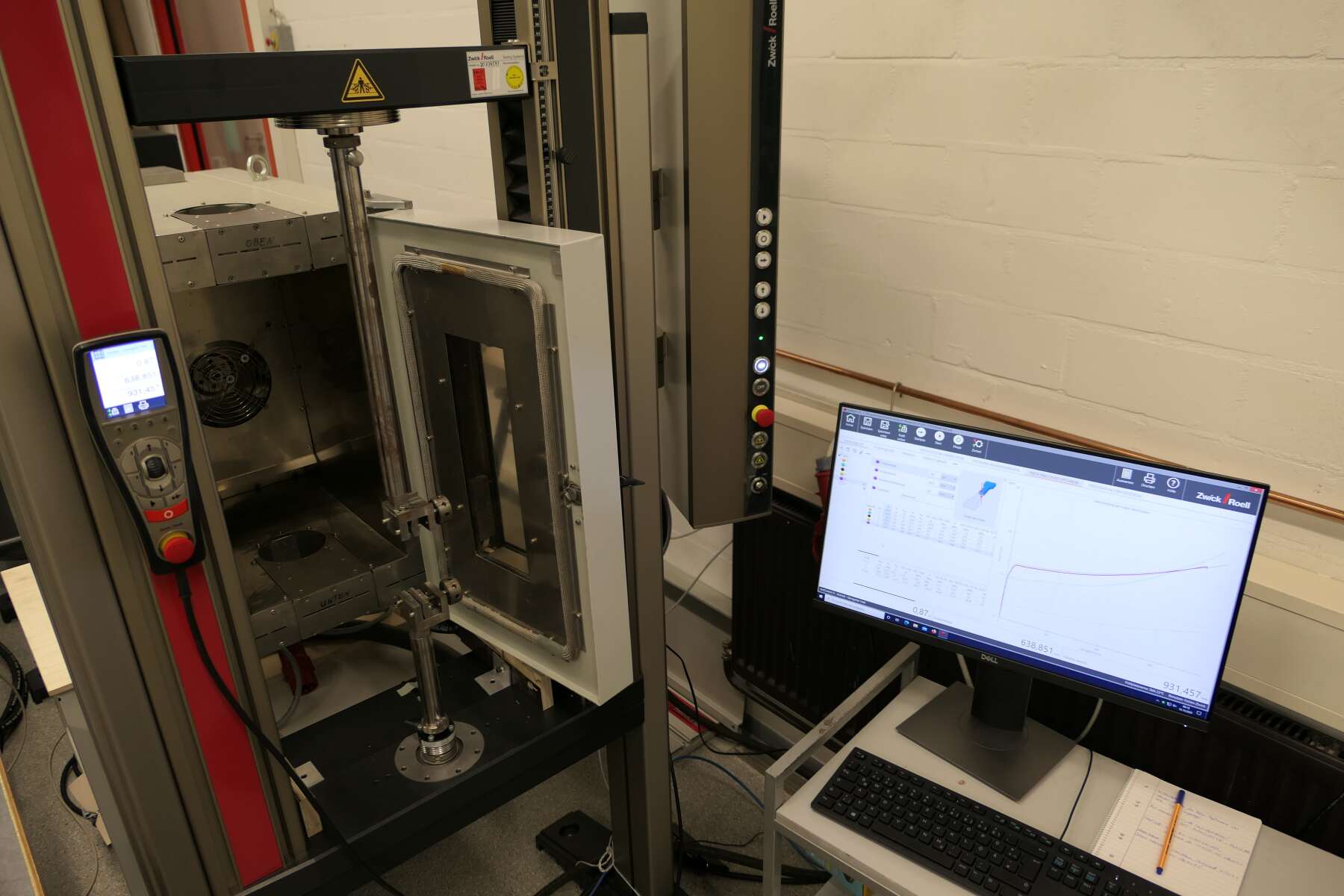

Static universal test machine - 5 kN (Zwick/Roell)

Tensile strength tests in accordance with or based on DIN EN ISO 527-3, DIN EN ISO 1421, DIN 53354, , DIN EN ISO 13934-1, ASTM D4851, ASTM D 5035 or similar test methods can be performed on strip specimens up to a maximum test load of 5kN.

The strains are recorded via the traverse path.

Temperature-controlled tests (-60 to 125 °C) can be carried out using a temperature chamber.

Tear propagation tests can be performed on incision specimens in accordance with or based on DIN 53363, DIN EN 1875-3 or ASTM D 5587.

The adhesive strength can be determined according to the guidelines of the DIBt (separation test) and ASTM D 4851.

Maximum static test load: 5 kN

Crosshead speed: v_min ... v_max  0,01... 3.000 mm/min
